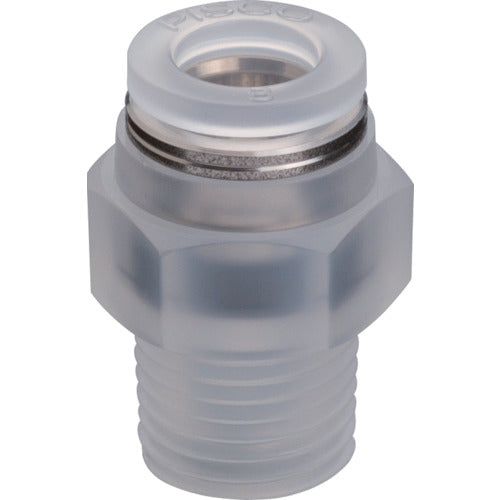

PISCO Tube Fitting Straight PP Type Tube 6 Thread R1/8 Rubber Material HNBR Specification PPC6-01-HN 1 pc

Catalog number: PPC6-01-HN Features: ●The main body material is PP, which is suitable for clean environments. ●The oil-free specifications meet the needs of a wide range of fields. ●The resin main body color is clear (semi-transparent), so the fluid (liquid) can be checked. ●It is also easy to check the hygiene. ●There is no metal exposed in the liquid contact area. (Thread material: SUS304 excluded.) ●If the thread material is PP, the weight is 1/2 or less of the standard fitting. Specifications: ●Connection port size: R1/8 ●Hexagonal face size (mm): 14 ●Maximum operating pressure (MPa): 1.0 (0 to 20°C) ●Usable fluid: air, water (conditions apply), other (conditions apply) ●Applicable tube outer diameter D (mm): 6 ●Usable vacuum pressure (kPa): -100 ●Usable temperature range: 0 to 80°C (no freezing) Material/Finish: ●Main body/thread: Polypropylene (PP) ●Seal rubber: HNBR Caution: ●When using water or other chemicals as the fluid, be sure to observe the following conditions. 1. When using water or other liquids, keep surge pressure below the maximum operating pressure. 2. When using water or other liquids, we recommend using an insert ring. 3. For chemicals, solvents, mixed gases, etc., compatibility with our specifications may vary depending on the conditions of use, so please check before use.
