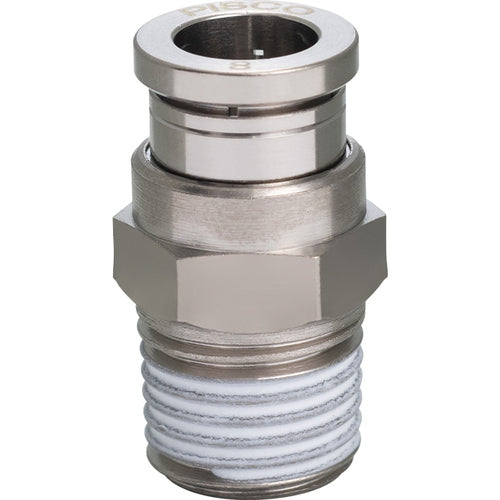

PISCO Tube Fitting Brass Straight Tube 4 Thread R1/8 Rubber HNBR No Cover KC4-01-1 1 pc

Catalog number: KC4-01-1 Features: ● In addition to the main body, the release ring is also made of brass. ● This is a type without a cover. ● If you are using it in an environment other than spatter-resistant (such as piping for mold cooling water), we recommend the type without a cover. Specifications: ● Applicable tube outer diameter (mm): 4 ● Connection port size: R1/8 ● Hexagonal face size (mm): 10 ● Maximum operating pressure (MPa): 1.0 ● Fluid used: Air, water (conditions apply), heat transfer oil ● Applicable tube outer diameter D (mm): 4 ● Operating temperature range: 0 to 100°C (no freezing) ● Maximum operating pressure: 1MPa ● Vacuum pressure used: -100kPa Material/Finish: ● Main body: Brass + electroless nickel plating ● Sealing rubber: Hydrogenated nitrile rubber (HNBR)
