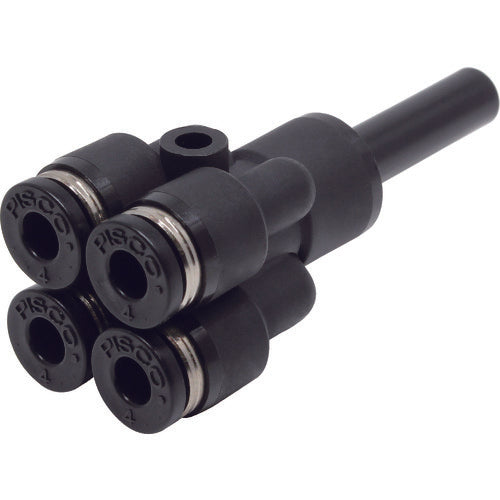

PISCO Tube Fitting Branch Union Double Y Tube 4 Fitting 6 PRJ6-4 1 pc

Catalog number: PRJ6-4 Features: ●A wide variety of models are available to accommodate all types of pneumatic piping. ●After installation, the tube outlet angle can be changed depending on the model. ●Water can also be used depending on conditions. Specifications: ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): 0 to 60 (no freezing) ●Operating fluid: air, water (conditions apply) ●Compatible tube outer diameter D1 (mm): 4 x 4 x 4 x 4 ●Compatible fitting size D2 (mm): 6 ●Operating temperature range: 0 to 60℃ (no freezing) ●Maximum operating pressure: 1MPa ●Operating vacuum pressure: -100kPa Materials/Finish: ●Metal parts: brass + electroless nickel plating ●Seal rubber: nitrile rubber (NBR) ●Resin parts: polybutylene terephthalate (PBT)
