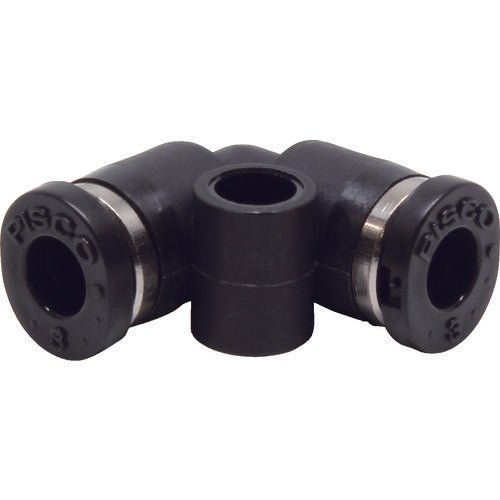

PISCO Tube Fitting Mini Union Elbow PV3M 1 pc

Catalog number: PV3M Features: ●This one-touch fitting has been successfully downsized by 40% in volume compared to the standard type. ●The release ring is oval shaped, making it easy to attach and detach the tube despite its ultra-compact size. Specifications: ●Applicable tube outer diameter D (mm): 3 x 3 ●Fluid temperature (℃): 0 to 60 (no freezing) ●Fluid used: Air ●Operating temperature range: 0 to 60℃ (no freezing) ●Maximum operating pressure: 1MPa ●Vacuum pressure used: -100kPa Materials/Finish: ●Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR)
