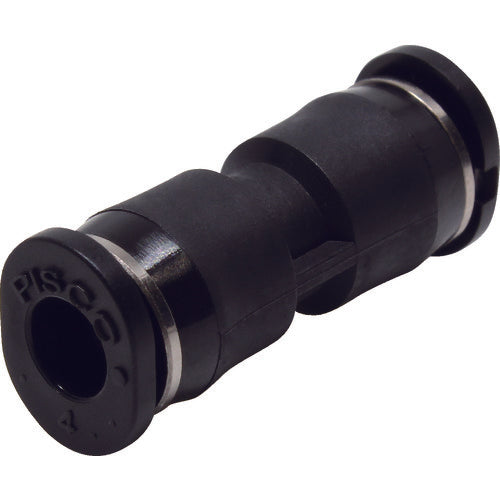

PISCO Tube Fitting Mini Union Straight PU4M 1 pc

Catalogue number: PU4M Features: ● A one-touch fitting that has been successfully downsized by 40% in volume compared to the standard type. ● The release ring is oval shaped, making it easy to attach and detach the tube despite its ultra-compact size. Specifications: ● Applicable tube outer diameter D (mm): 4 x 4 ● Fluid temperature (℃): 0 to 60 (no freezing) ● Fluid used: Air ● Operating temperature range: 0 to 60℃ (no freezing) ● Maximum operating pressure: 1MPa ● Vacuum pressure used: -100kPa Materials/Finish: ● Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ● Sealing rubber: Nitrile rubber (NBR)
