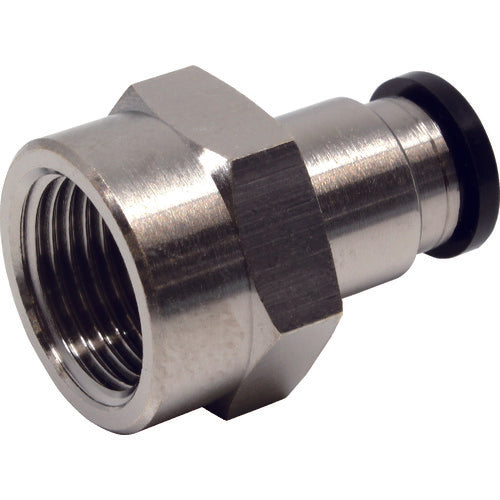

PISCO Tube Fitting Female Straight Tube 8 Thread 03 PCF8-03 1 pc

Catalog number: PCF8-03 Features: ●After installation, the tube outlet angle can be changed depending on the model. ●Water can also be passed through depending on the conditions. ●A wide range of models are available to accommodate all types of pneumatic piping. Specifications: ●Compatible tube outer diameter (mm): 8 ●Connection port size: Rc3/8 ●Hexagonal face size (mm): 21 ●Fluid temperature (℃): 0 to 60 (no freezing) ●Total length (mm): 8 ●Usable fluid: air, water (conditions apply) ●Compatible tube outer diameter D (mm): 8 ●Usable temperature range: 0 to 60℃ (no freezing) ●Maximum operating pressure: 1MPa ●Usable vacuum pressure: -100kPa Material/Finish: ●Body: Brass + electroless nickel plating ●Seal rubber: Nitrile rubber (NBR)
