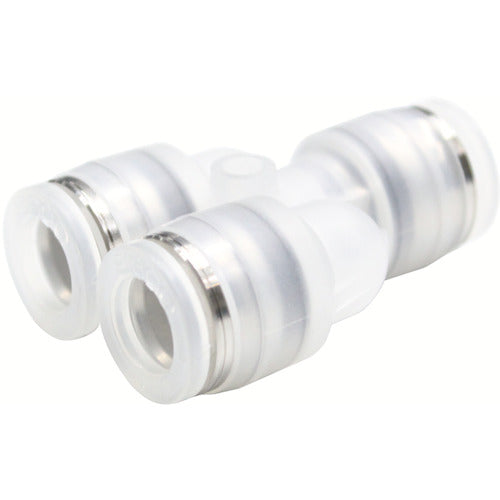

PISCO Tube Fitting Union Y PP Type PPY12 1 pc

Catalog number: PPY12 Features: ●Oil-free specifications meet the needs of a wide range of fields. ●SUS304 is used as the metal material, and EPDM is used as the seal material. ●The resin body color is clear (semi-transparent), allowing you to check the fluid (liquid). ●Hygiene is also easy to check. ●There is no exposed metal in the liquid-contacting parts. (Thread material: SUS304 excluded.) ●When the thread material is PP, the weight is less than half that of a standard fitting. Specifications: ● Applicable tube outer diameter D (mm): 12 x 12 x 12 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): 0 to 80 (no freezing) ● Operating fluid: air, water (conditions apply), others (conditions apply) ● Operating temperature range: 0 to 80℃ (no freezing) ● Maximum operating pressure: 1.0MPa (0 to 20℃) ● Operating vacuum pressure: -100kPa Material/Finish: ● Body: Polypropylene (PP) ● Sealing rubber: Ethylene propylene rubber (EPDM) Caution: ● When using water or other chemicals as the fluid, be sure to observe the following conditions: 1. When using water or liquids, keep the surge pressure below the maximum operating pressure. 2. When using water or liquids, we recommend using an insert ring. 3. For chemicals, solvents, mixed gases, etc., our specifications may differ depending on the conditions of use, so please check before use.
