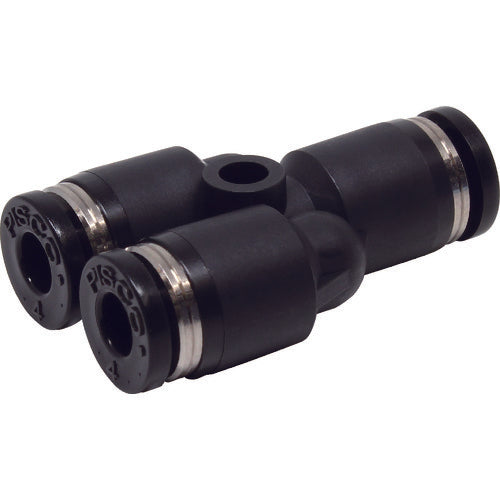

PISCO Tube Fitting Union Y PY4 1 pc

Catalog number: PY4 Features: ●After installation, the tube outlet angle can be changed depending on the model. ●Water can also be passed through depending on the conditions. ●A wide range of models are available to accommodate all types of pneumatic piping. Specifications: ●Applicable tube outer diameter D (mm): 4 x 4 x 4 ●Maximum operating pressure (MPa): 1 ●Operating fluid: air, water (conditions apply) ●Operating temperature range: 0 to 60°C (no freezing) ●Maximum operating pressure: 1MPa ●Operating vacuum pressure: -100kPa Material/Finish: ●Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR)
