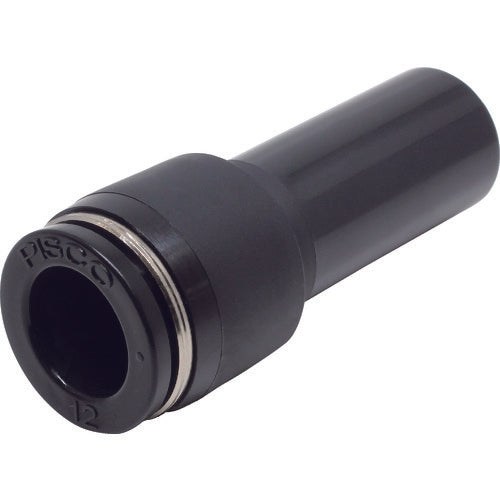

PISCO Tube Fitting Reducer PGJ16-12 1 pc

Catalog number: PGJ16-12 Features: ●After installation, the tube outlet angle can be changed depending on the model. ●Water can also be passed through depending on the conditions. ●A wide range of models are available to accommodate all pneumatic piping. Specifications: ●Compatible tube outer diameter D1 (mm): 12 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 60 (no freezing) ●Operating fluid: air, water (conditions apply) ●Compatible fitting size D2 (mm): 12 ●Compatible fitting size D1 (mm): 16 ●Operating temperature range: 0 to 60℃ (no freezing) ●Maximum operating pressure: 1MPa ●Operating vacuum pressure: -100kPa Material/Finish: ●Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR)
