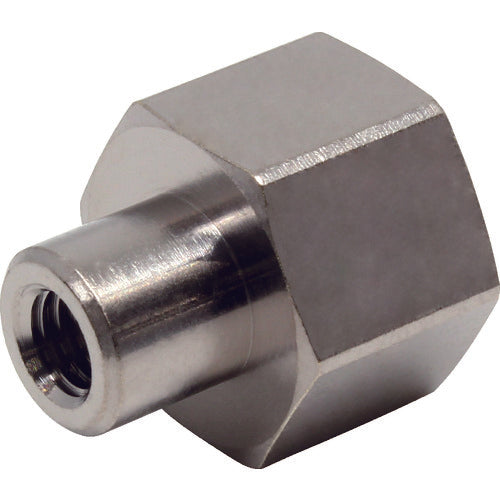

PISCO Tube Fitting Different Diameter Socket Rc1/8・M5×0.8 PFF01-M5 1 pc

Catalog number: PFF01-M5 Features: ●A wide range of models are available to accommodate all types of pneumatic piping. ●After installation, the tube outlet angle can be changed depending on the model. ●Water can also be used depending on the conditions. Specifications: ●Connection diameter: Rc1/8 x M5 x 0.8 female thread ●Hexagonal face size (mm): 14 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): 0 to 60 (no freezing) ●Operating fluid: air, water (conditions apply) ●Connection diameter D2: M5 x 0.8 ●Connection diameter D1: Rc1/8 ●Operating temperature range: 0 to 60℃ (no freezing) ●Maximum operating pressure: 1MPa ●Operating vacuum pressure: -100kPa Material/Finish: ●Body: Brass + electroless nickel plating
