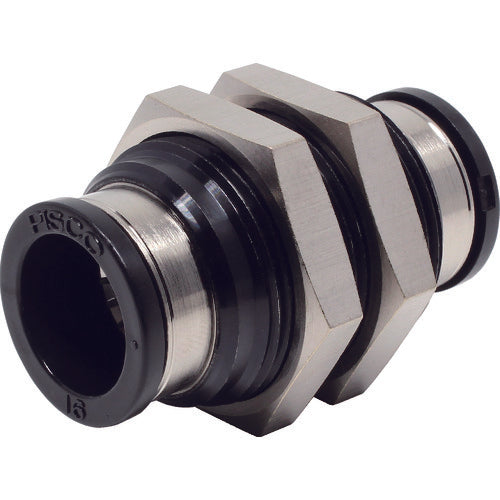

PISCO Tube Fitting Bulkhead Union PM16 1 pc

Catalog number: PM16 Features: ●After installation, the tube outlet angle can be changed depending on the model. ●Water can also be passed through depending on the conditions. ●A wide range of models are available to accommodate all pneumatic piping. Specifications: ●Applicable tube outer diameter D (mm): 16 x 16 ●Hexagonal face size (mm): 32 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 60 (no freezing) ●Operating fluid: air, water (conditions apply) ●Operating temperature range: 0 to 60℃ (no freezing) ●Maximum operating pressure: 1MPa ●Operating vacuum pressure: -100kPa Material/Finish: ●Body: Aluminum + anodized ●Seal rubber: Nitrile rubber (NBR)
