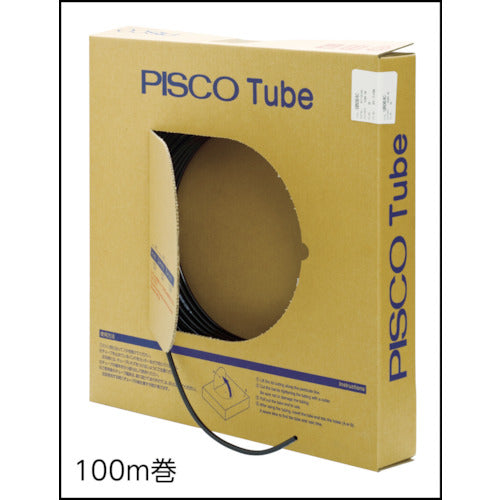

PISCO Nylon Tube Yellow 12 x 9 100m NA1290-100-Y 1 Roll

Catalog number: NA1290-100-Y Features: *Excellent pressure resistance, abrasion resistance, and cold resistance. *Resistant to bending fatigue, allowing for long-term stable use. *Cut marks are provided at approximately 500 mm intervals for easy cutting of the tube. Specifications: Color: Yellow; Outer diameter (mm): 12; Inner diameter (mm): 9; Minimum bending radius (mm): 36; Total length (m): 100; Maximum operating pressure (MPa): 2.0; Operating temperature range (℃): Air: -20 to 100 (no freezing); Water, heat transfer oil: -15 to 90 (no freezing); Operating vacuum pressure (MPa): -0.1; Operating fluid: Air, water (conditions apply), heat catalyst oil (conditions apply); Operating pressure: 1.5MPa (at 20℃ 65%RH); Operating vacuum pressure: -100kPa; Operating temperature range: -15 to 90℃ (no freezing); Material/Finish: Nylon (PA12); Caution: Do not apply loads such as tension, twisting, or extreme bending to the tube. This may cause the tube to collapse, burst, or come off. Do not rub or entangle the tube to avoid scratching it. This may cause the tube to burst. ●The tube's bursting pressure decreases as the temperature rises, so understand the operating pressure and ensure that you have a sufficient safety margin. ●Use the tube with a minimum bending radius or greater. ●When piping the tube, allow for sufficient margin, taking into account changes in length, etc.
