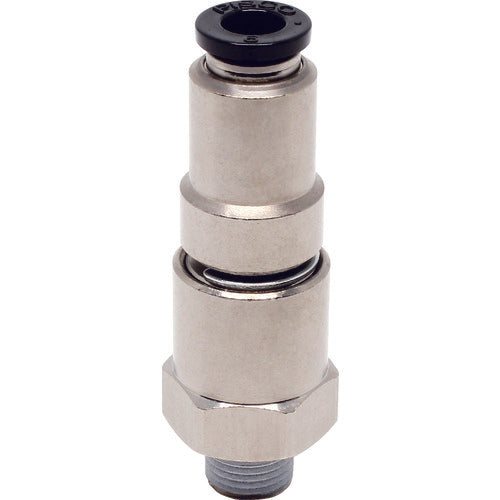

PISCO High Rotary Joint Straight Tube 6 Thread R1/8 RHC6-01 1 pc

Catalog number: RHC6-01 Features: ●One-touch fitting that can be piped to the oscillating and rotating parts of equipment. ●Bearings are used in the rotating parts, so it can be used in oscillating and rotating parts. Specifications: ●Compatible tube outer diameter (mm): 6 ●Connection port size: R1/8 ●Hexagonal face size (mm): 17 ●Fluid temperature (℃): 0-60 ●Total length (mm): 54.6 ●Fluid used: Air ●Compatible tube outer diameter D (mm): 6 ●Allowable rotation speed (min-1): 1200 ●Operating temperature range: 0-60℃ (no freezing) ●Maximum operating pressure: 1MPa ●Vacuum pressure used: -100kPa Materials/Finish: ●Body: Brass + electroless nickel plating ●Seal rubber: Nitrile rubber (NBR), fluororubber (FKM)
