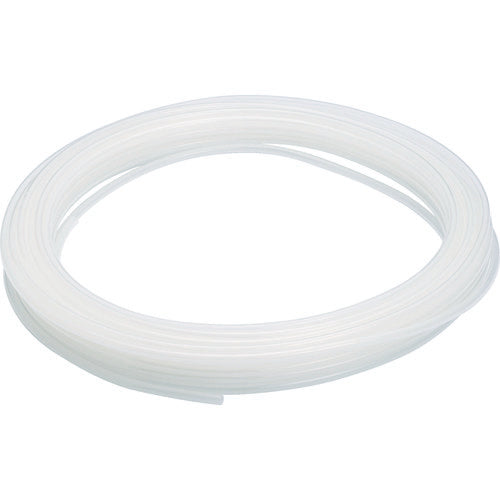

PISCO Polyurethane Tube, Milk White, 3 x 2, 20m, UB0320-20-W, 1 Roll

Catalog number: UB0320-20-W Features: ●Excellent flexibility. ●Ideal for general pneumatic piping that requires a small bending radius. ●Cut marks are displayed at approximately 500 mm intervals, which are convenient when cutting the tube. Specifications: ●Color: Milk white ●Outer diameter (mm): 3 ●Inner diameter (mm): 2 ●Minimum bending radius (mm): 8 ●Total length (mm): 20 ●Usable fluid: Air, water (conditions apply) ●Total length (m): 20 ●Maximum operating pressure: 1.0 MPa (at 20°C 65% RH) ●Usable vacuum pressure: -100 kPa ●Usable temperature range: -15 to 60°C (water, no freezing), -20 to 70°C (air, no freezing) Material/Finish: ●Thermoplastic polyurethane (TPU) Caution: ●Do not apply loads such as tension, twisting, or extreme bending to the tube. This may cause the tube to collapse, burst, or come off. ●Do not rub or entangle the tube to avoid scratches. This may cause the tube to burst. ●The tube's bursting pressure decreases as the temperature rises, so understand the operating pressure and ensure that you have a sufficient safety margin. ●Use the tube with a minimum bending radius or greater. ●When piping the tube, allow for sufficient margin, taking into account changes in length, etc.
