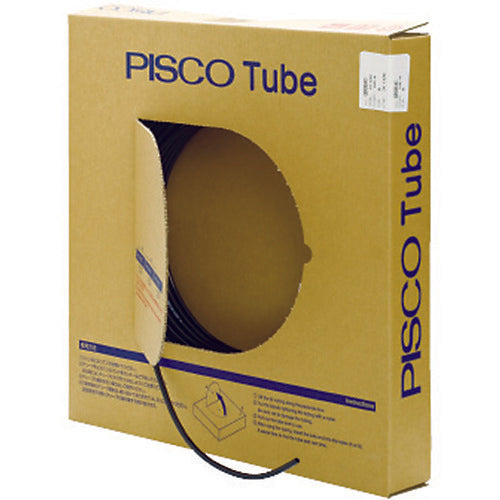

PISCO Polyurethane Tube Black 4 x 2.5 100m UB0425-100-B 1 Roll

Catalog number: UB0425-100-B Features: * Excellent flexibility. * Ideal for general pneumatic piping that requires a small bending radius. * Cut marks that are convenient when cutting the tube are displayed at approximately 500 mm intervals. Specifications: Color: Black; Outer diameter (mm): 4; Inner diameter (mm): 2.5; Minimum bending radius (mm): 10; Total length (mm): 100; Vacuum pressure (MPa): -0.1; Fluid: Air, water (conditions apply); Total length (m): 100; Wall thickness (mm): 0.75; Tube outer diameter (φD) (mm): φ4; Tube inner diameter (φD) (mm): φ2.5; Minimum mounting radius (mm): 15; Maximum pressure: 1.0MPa (at 20°C 65%RH); Vacuum pressure: -100kPa; Temperature range: Air -20 to 70°C (no freezing); Water -15 to 60°C (no freezing); Made in an ISO9001 certified factory; Made in an ISO14001 certified factory; Material/Finish: TPU (Thermoplastic Polyurethane) Caution: ●Do not apply loads such as tension, twisting, or extreme bending to the tube. This may cause the tube to collapse, burst, or come loose. ●Do not scratch the tube by rubbing or tangling it. This may cause the tube to burst. ●The tube's bursting pressure decreases as the temperature rises, so be sure to understand the operating pressure and ensure that you have a sufficient safety margin. ●Use the tube with a minimum bending radius or greater. ●When piping the tube, allow for sufficient margin to take into account changes in length, etc.
