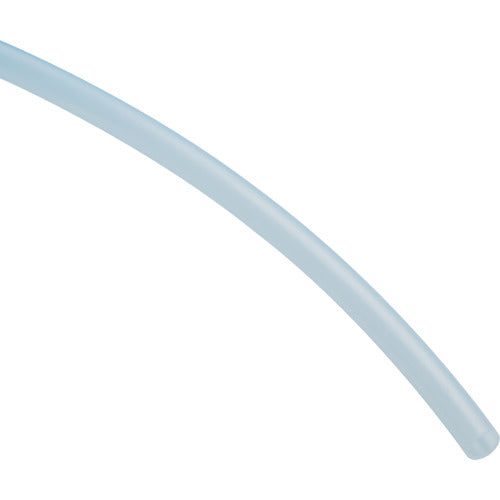

PISCO Polyolefin Tube CTA1290-20-CW 1 Roll

Catalog number: CTA1290-20-CW Features: ● Uses polyolefin resin suitable for clean environments. ● Excellent water resistance. Specifications: ● Color: Clear white ● Outer diameter (mm): 12 ● Inner diameter (mm): 9 ● Minimum bending radius (mm): 33 ● Total length (m): 20 ● Maximum operating pressure (MPa): 1.0 (20°C 65% RH) ● Operating temperature range (°C): -15 to 80 (no freezing) ● Fluids used: Air, water (conditions apply), other chemicals (conditions apply) ● Minimum mounting radius (mm): 54 ● Maximum operating pressure: 1.0MPa ● Vacuum pressure used: -100kPa ● Operating temperature range: -15 to 80°C (no freezing) Material/Finish: ● Polyolefin (PAO)
