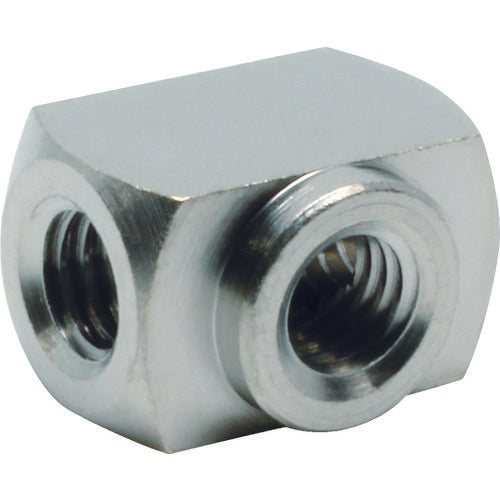

PISCO Minimal Fitting Union Tee LE-FM5 1 pc

Catalog number: LE-FM5 Features: ●Ideal for small equipment and space-saving fine piping. ●Ideal for vacuum equipment piping. (Our UD tube is recommended) ●The clamping type makes it easy to attach and detach the tube, and the tube can be clamped by hand only. Applications: ●Fluid used: Air ●Temperature range for use: 0 to 50°C (no freezing) ●Maximum pressure used: 1.0MPa ●Vacuum pressure used: -100kPa Specifications: ●Connection port size: M5 x 0.8 ●Fluid temperature (°C): 0 to 50 (no freezing) ●Fluid used: Air, water (conditions apply) ●Temperature range for use: 0 to 50°C (no freezing) ●Maximum pressure used: 0.5MPa (barb type) *1MPa (clamping type, female thread type) * *When using vacuum tube (UD): 0.4MPa ●Vacuum pressure used: -100kPa Material/Finish: ●Body: Brass + electroless nickel plating
