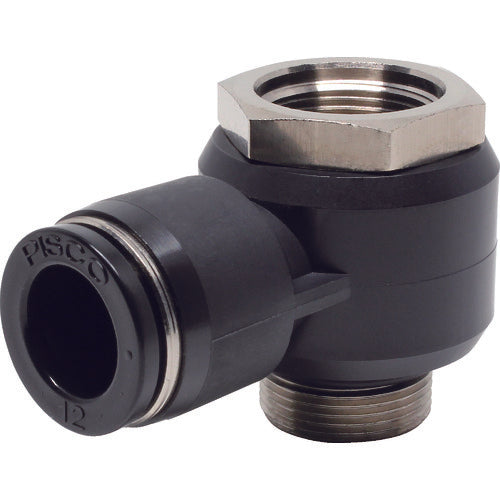

PISCO Main Block Air Extraction Port Universal Quick MHQ1812 1 pc

Catalog number: MHQ1812 Features: ● Assembled manifold for centralized distribution, etc. ● The same flow rate as steel pipe piping can be ensured, and the external dimensions are about half. Specifications: ● Applicable tube outer diameter D (mm): 12 ● Hexagonal face size (mm): 24 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): 0 to 60 (no freezing) ● Assembly screw size: M18 x 1 ● Fluid used: Air ● Operating temperature range: 0 to 60℃ (no freezing) ● Maximum operating pressure: 1MPa (0.9MPa when using coupling module QMC20) ● Operating vacuum pressure: -100kPa Material/Finish: ● Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ● Sealing rubber: Nitrile rubber (NBR)
