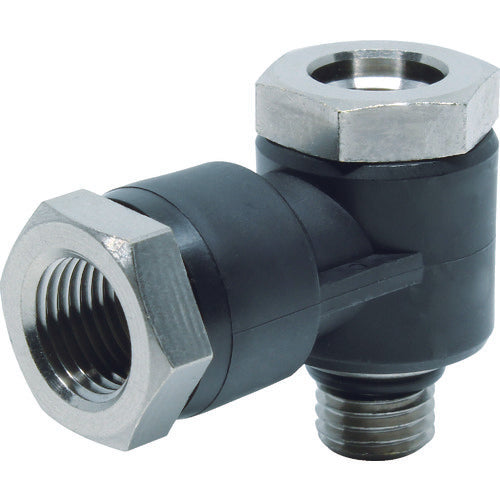

PISCO Main Block Air Extraction Port Universal Taper MHT0801 1 pc

Catalog number: MHT0801 Features: ● Assembled manifold for centralized distribution, etc. ● The same flow rate as steel pipe piping can be ensured, with external dimensions approximately half. Specifications: ● Hexagonal face (mm): Assembly screw section: 14, Tapered screw section: 14 ● Connection port size: Rc1/8 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): 0 to 60 (no freezing) ● Assembly screw size: M8×1 ● Fluid used: Air ● Operating temperature range: 0 to 60℃ (no freezing) ● Maximum operating pressure: 1MPa (0.9MPa when using coupling module QMC20) ● Operating vacuum pressure: -100kPa Materials/Finish: ● Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ● Sealing rubber: Nitrile rubber (NBR)
