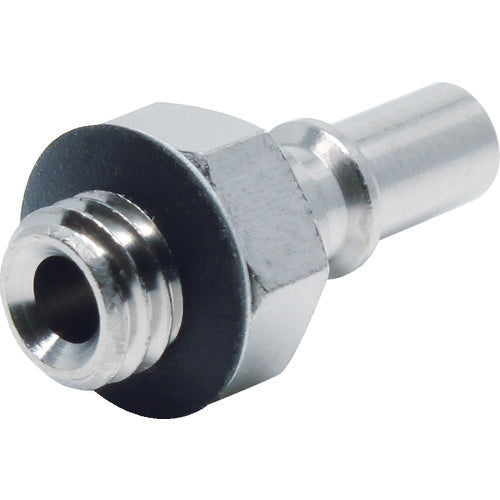

PISCO Light Coupling Straight Thread Plug CPPE3-M5 1 pc

Catalog number: CPPE3-M5 Features: ●Designed to have low mounting resistance. ●Air stops when the socket plug is removed. ●Can be combined with couplings from other companies. ●E3 and E7 series are designed to be compact. Specifications: ●Connection port size: M5 x 0.8 ●Hexagonal face size (mm): 7 ●Maximum operating pressure (MPa): 0.9 ●Usable fluid: air, water ●Usable temperature range: 0 to 60°C (no freezing) ●Maximum operating pressure: 0.9MPa ●Compatible socket: Light coupling E3 series Material/Finish: ●Body: Brass + electroless nickel plating
