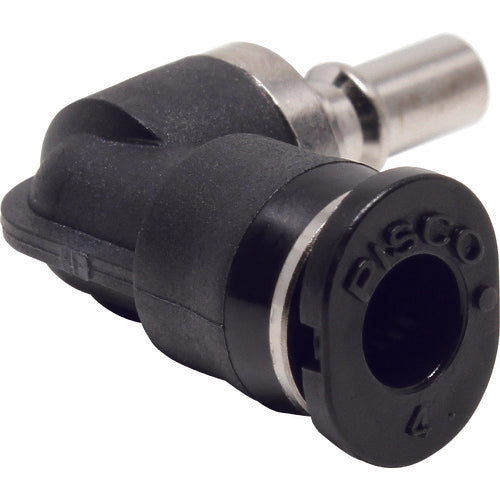

PISCO Light Coupling E3 Series Plug Elbow One-Touch Fitting Type CPPE3L-4 1 pc

Catalog number: CPPE3L-4 Features: ● A one-touch joint built-in type coupling for general pneumatic piping, compatible with couplings from other companies. ● Can be attached and detached with one hand. Specifications: ● Applicable tube outer diameter D (mm): 4 ● Fluid used: Air, water (conditions apply) ● Applicable socket: CPSE3 type ● Operating temperature range: 0 to 60°C (no freezing) ● Maximum operating pressure: 0.9MPa ● Vacuum pressure used: -100kPa ● Applicable socket: Light coupling E3 series Material/Finish: ● Metal parts: Brass + electroless nickel plating ● Plastic parts: PBT ● Sealing rubber: NBR
