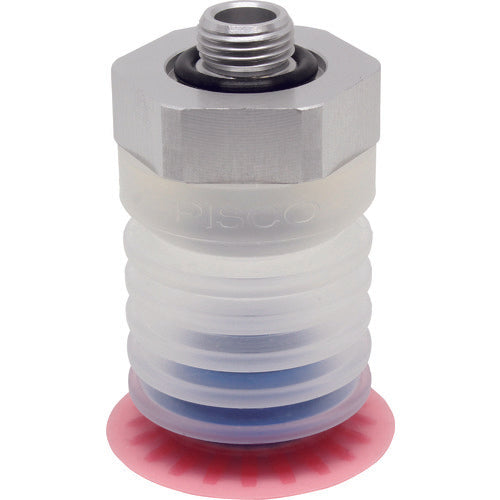

PISCO Vacuum Pad for Packaging Bags, Direct-Mount Type, 20 Degree, 5-Stage, G1/8 Flat Type, VPE30PBS25-G1-FF, 1 Piece

Catalog number: VPE30PBS25-G1-FF Features: ● The lip is soft, and the bellows is made of hard material. ● It has achieved the ability to follow the workpiece and stabilize its posture during transportation. ● The bellows is available in 3 and 5 stages. ● The 3-stage type has excellent posture stability during high-speed transportation. ● The 5-stage type has excellent followability when adsorbing tilted workpieces. ● Two types of rubber hardness are available for the lip. ● There are two types of lip strength, pink (extremely soft material) is optimal for packaging bags that are easily deformed, and blue (soft material) is optimal for thick vinyl and sheet-like packaging bags. ● Two types of suction prevention adapters are available. ● The spherical type is ideal for soft packaging materials such as shirataki bags, and the flat type is ideal for hard packaging materials such as pouch packs. ● The part that comes into contact with the workpiece is made of material that complies with the Food Sanitation Act and FDA. Applications: ● It is ideal for adsorbing and transporting packaging bags that are easily deformed (such as packaging bags containing liquids). Specifications: ● Pad outer diameter (mm): 30 ● Connection port diameter: G1/8A ● Number of bellows stages (stages): 5 ● Vacuum outlet: G1/8A ● Pad rubber: Silicone ● Pad holder: Aluminum ● Suction prevention adapter: PP ● Lip hardness (°): 20 ● Suction prevention adapter: Flat type Material/Finish: ● Pad rubber: Silicone rubber ● Pad holder: Aluminum ● Suction prevention adapter: Polypropylene (PP)
