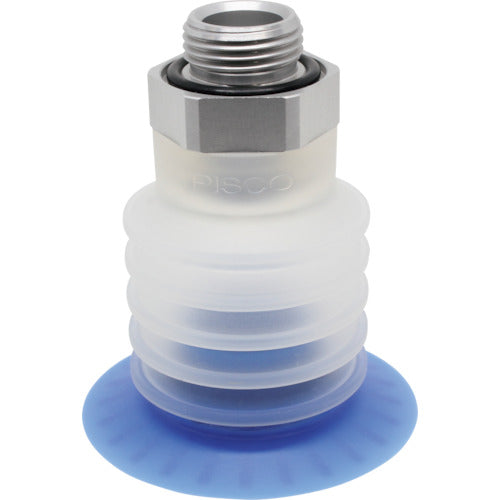

PISCO Vacuum Pad for Packaging Bags, Direct-Mount Type, 40 Degree, 5-Tier, G3/8 Flat Type, VPE50PBS45-G3-FF, 1 Piece

Catalog number: VPE50PBS45-G3-FF Features: ● The lip is soft, and the bellows is made of hard material. ● It has achieved the ability to follow the workpiece and stabilize its posture during transportation. ● The bellows is available in 3 and 5 stages. ● The 3-stage type has excellent posture stability during high-speed transportation. ● The 5-stage type has excellent followability when adsorbing tilted workpieces. ● Two types of rubber hardness are available for the lip. ● The extremely soft material (pink) is ideal for packaging bags that are easily deformed, and the soft material (blue) is ideal for thick vinyl and sheet-like packaging bags. ● Two types of suction prevention adapters are available. ● The spherical type is ideal for soft packaging materials such as shirataki bags, and the flat type is ideal for hard packaging materials such as pouch packs. ● The part that comes into contact with the workpiece is made of material that complies with the Food Sanitation Act and FDA. Applications: ● It is ideal for adsorbing and transporting packaging bags that are easily deformed (such as packaging bags containing liquids). Specifications: ● Pad outer diameter (mm): 50 ● Connection port diameter: G3/8A ● Number of bellows stages (stages): 5 ● Vacuum outlet: G3/8A ● Pad rubber: Silicone ● Pad holder: Aluminum ● Suction prevention adapter: PP Material/Finish: ● Pad rubber: Silicone rubber ● Pad holder: Aluminum
