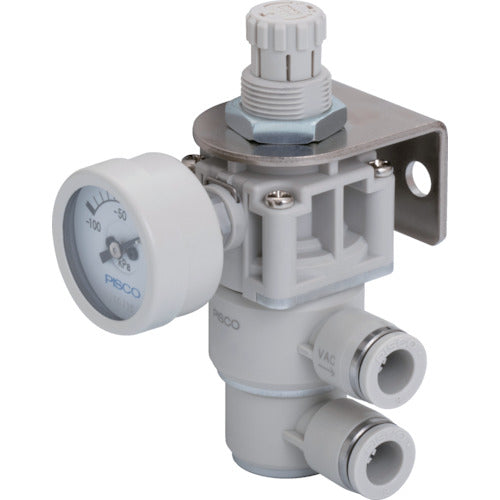

PISCO Vacuum Regulator Push Lock Type with φ30mm Negative Pressure Gauge Union Type RVZ8UG 1 pc

Catalogue number: RVZ8UG Features: ●Not only can it control the source pressure, but it can also control the end pressure. ●The push-lock knob allows it to be operated with one hand. ●Up to 50% lighter than conventional products. ●The flow path does not use metal materials that are primarily copper, and the rubber material is HNBR, which has excellent ozone resistance. ●The primary and secondary fittings rotate independently, allowing for free piping direction. Specifications: ● Compatible tube outer diameter D (mm): 8 ● Fluid used: Air ● Operating temperature (℃): 0 to 40 (no freezing) ● Operating pressure range (kPa): -100 to 0 ● Set pressure range (kPa): -100 to 1.3 ● Suction flow rate (L/min): 30 (ANR) ● Fluid used: Air ● Operating pressure range: -100 to 0 kPa ● Set pressure range: -100 to -1.3 kPa ● Suction flow rate: 30 L/min (ANR) ● Operating temperature range: 0 to 40℃ (no freezing) ● Display: φ30 mm negative pressure gauge Material/Finish: ● Plastic body: Polybutylene terephthalate (PBT) ● Metal body: Aluminum ● Pressure adjustment knob, release ring: POM ● Sealing rubber: HNBR
