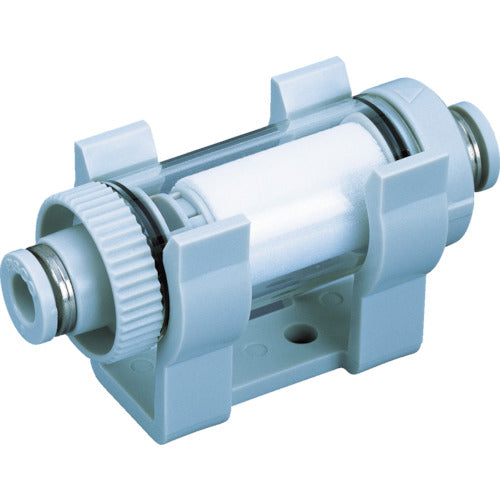

PISCO Vacuum Filter Small Union Resin Type VFU3-88P 1 pc

Catalog number: VFU3-88P Features: ●Can be installed in the middle of piping. ●Low piping resistance, stable. ●Vacuum filter that can be easily installed in the middle of piping. Specifications: ●Applicable tube outer diameter D (mm): 8 x 8 ●Filtration area (cm2): 12.5 ●Filtration accuracy (μm): 5 ●Fluid used: Air ●Operating temperature range: 0 to 60°C (no freezing) ●Operating pressure: -100 to 0 kPa ●Filtration degree: 5 μm (collection efficiency 95%) (based on our measurement conditions) Material/Finish: ●Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR) ●Filter cover: Si-PC resin ●Element: Polyvinyl formal (PVF) ●Holder: Polyacetal (POM)
