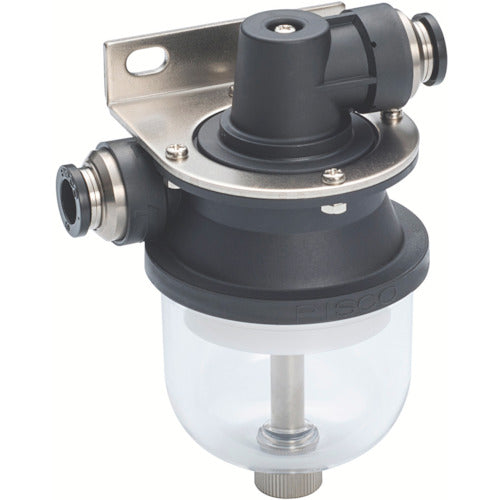

PISCO Vacuum Filter Large Capacity Exhaust Type In 10 Out 10 VFR20-10-10 1 pc

Catalog number: VFR20-10-10 Features: ●Dust and water droplets sucked in by the vacuum generator are removed by the cyclone effect and element. ●The dust case is large, reducing the number of maintenance operations. Specifications: ●Applicable tube outer diameter D (mm): 10 x 10 ●Filtration area (cm2): 20 ●Filtration accuracy (μm): 10 ●Fluid used: Air ●Operating temperature range: 0 to 60°C (no freezing) ●Operating pressure: -100 to 0 kPa ●Filtration degree: 10 μm (based on our measurement conditions) Material/Finish: ●Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR) ●Filter cover: PCTG resin ●Element: Polyvinyl formal (PVF)
