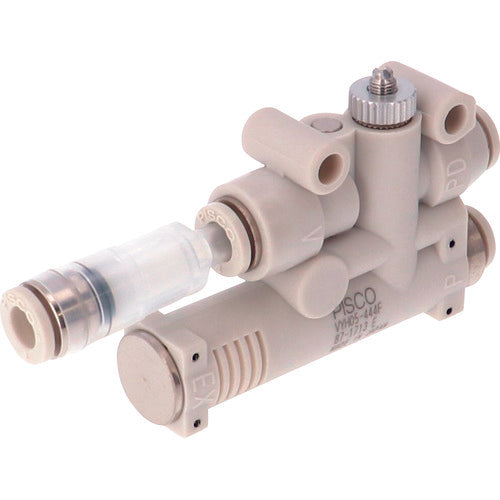

PISCO Vacuum Generator with Destruction Function, Atmospheric Release Specification, Vacuum Filter Nozzle 05 Port 4 Supply 4 Discharge 4 VYH05-444F 1 pc

Catalog number: VYH05-444F Features: ● Ejector and vacuum break function are integrated. (Vacuum generation ⇔ break air can be switched by turning the air supply to the ejector ON/OFF) ● Small and lightweight, so it can be used at the end of vacuum piping. ● By installing a shutoff valve, the adsorption and destruction cycle can be accelerated. Applications: ● For adsorption and transportation of workpieces. Specifications: ● Applicable tube outer diameter D (mm): 4 (vacuum port) x 4 (air supply port) x 4 (break air supply port) ● Nozzle diameter (mm): 0.5 ● Fluid used: Air ● High vacuum type ● Operating temperature range: 5 to 50°C ● Operating pressure range: 0.3 to 0.7 MPa ● Rated supply pressure: 0.5 MPa ● Lubrication: Not required Materials/Finish: ● Metal parts: Brass + electroless nickel plating ● Plastic parts: PBT ● Seal rubber: NBR, HNBR ● Element: PVF
