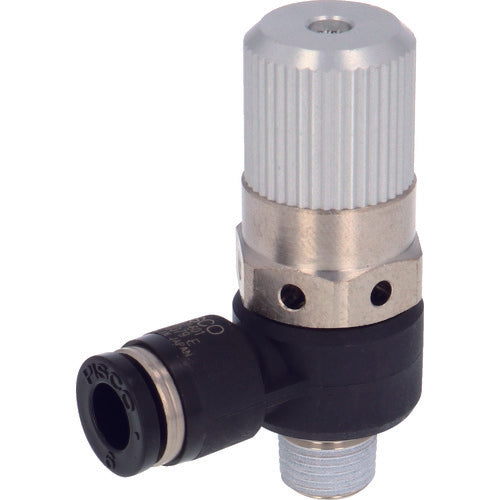

PISCO Vacuum Generator Solenoid Valve Direct Elbow VHH12-601 1 pc

Catalog number: VHH12-601 Features: ● Generates a vacuum from compressed air. ● Small and lightweight. Specifications: ● Applicable tube outer diameter D (mm): 6 ● Connection port size: R1/8 ● Nozzle diameter (mm): 1.2 ● Fluid used: Air ● Fluid temperature (℃): 0 to 60 (no freezing) ● Operating pressure (MPa): 0.15 to 0.7 ● Operating temperature range: 0 to 60℃ (no freezing) ● Operating pressure: 0.15 to 0.7MPa ● Rated supply pressure: 0.5MPa Materials/Finish: ● Metal parts: Brass + electroless nickel plating ● Plastic parts: Polybutylene terephthalate (PBT) ● Element: Polyvinyl formal (PVF)
