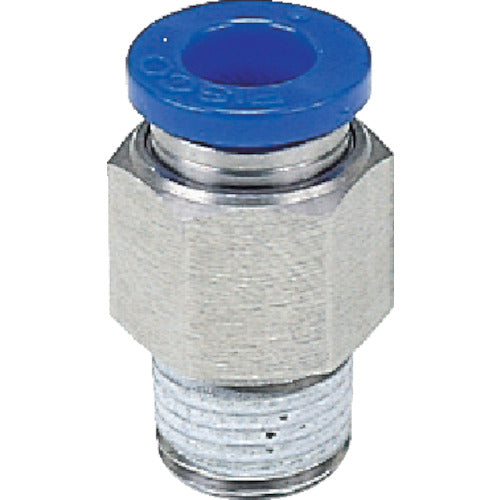

PISCO Corrosion-resistant SUS303 equivalent fitting Straight tube 10 thread R1/4 SPC10-02 1 piece

Catalog number: SPC10-02 Features: ●Ideal for when strength is required and in corrosive environments. ●The metal body is made of special stainless steel with corrosion resistance equivalent to SUS303. ●No copper-based metals are used. ●HNBR is used for the sealing rubber material as a countermeasure against low-concentration ozone. Specifications: ●Connection port size: R1/4 ●Hexagonal face size (mm): 17 ●Usable fluid: air, water (conditions apply) ●Compatible tube outer diameter D (mm): 10 ●Usable temperature range: 0 to 60°C (no freezing) ●Maximum operating pressure: 1.0MPa ●Usable vacuum pressure: -100kPa Material/Finish: ●Metal body: Special stainless steel ●Sealing rubber: HNBR
