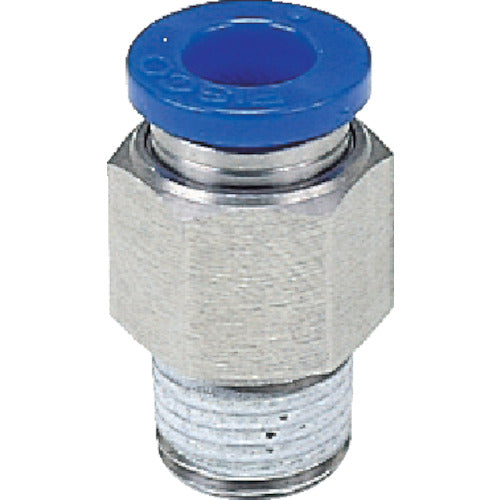

PISCO Corrosion-resistant SUS303 equivalent fitting Straight tube 12 thread R1/2 SPC12-04 1 piece

Catalog number: SPC12-04 Features: ●Ideal for environments where strength is required and where corrosion is likely to occur. ●The metal body is made of special stainless steel with corrosion resistance equivalent to SUS303. ●No copper-based metals are used. ●HNBR is used for the sealing rubber material as a countermeasure against low-concentration ozone. Specifications: ●Connection diameter: R1/2 ●Hexagonal face size (mm): 21 ●Usable fluid: air, water (conditions apply) ●Compatible tube outer diameter D (mm): 12 ●Usable temperature range: 0 to 60°C (no freezing) ●Maximum operating pressure: 1.0MPa ●Usable vacuum pressure: -100kPa Material/Finish: ●Metal body: special stainless steel ●Sealing rubber: HNBR
