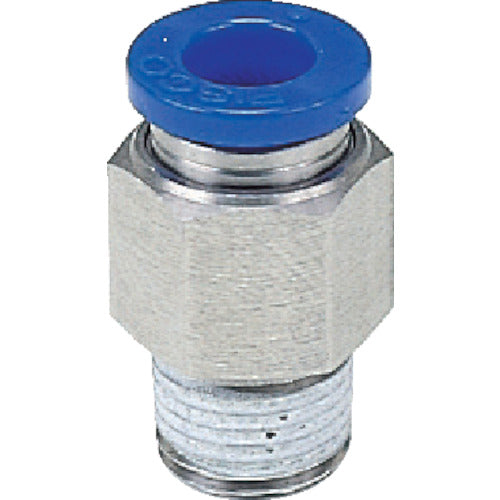

PISCO Corrosion-resistant SUS303 equivalent fitting Straight tube 16 thread R1/2 SPC16-04 1 piece

Catalog number: SPC16-04 Features: ●Ideal for when strength is required and in corrosive environments. ●Special stainless steel with corrosion resistance equivalent to SUS303 is used for the metal body. ●Copper-based metals are not used. ●HNBR is used for the sealing rubber material as a countermeasure against low-concentration ozone. Specifications: ●Connection size: R1/2 ●Usable fluid: air, water (conditions apply) ●Compatible tube outer diameter D (mm): 16 ●Usable temperature range: 0 to 60°C (no freezing) ●Maximum operating pressure: 1.0MPa ●Usable vacuum pressure: -100kPa Material/Finish: ●Metal body: Special stainless steel ●Sealing rubber: HNBR
