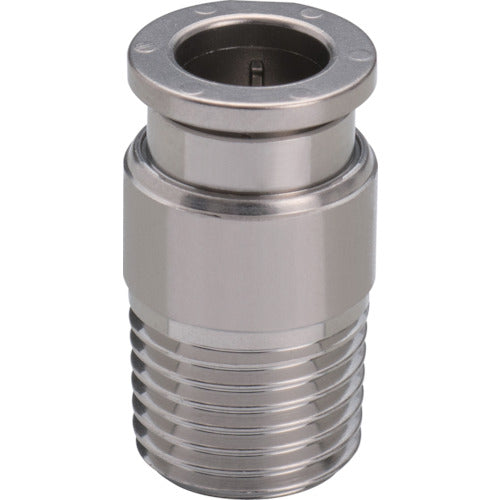

PISCO Corrosion-resistant one-touch fitting, tube fitting SUS316, hexagonal hole straight, for φ6, connection diameter R1/4, SSPOC6-02, 1 piece

Catalog number: SSPOC6-02 Features: ● One-touch fitting made of SUS316 with excellent corrosion resistance. Applications: ● For piping in fields such as food, pharmaceuticals, medical care, and semiconductors. Specifications: ● Applicable tube outer diameter D (mm): 6 ● Connection port size: R1/4 ● Hexagonal face size (mm): 4 ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): -5 to 150 (no freezing) ● Fluid used: air, water (conditions apply), other chemicals, etc. (conditions apply) ● Operating vacuum pressure (kPa): -100 ● Operating temperature range: -5 to 150℃ (no freezing) Material/Finish: ● Metal body: SUS316 ● Sealing rubber: FKM ● Thread material/surface treatment: SUS316
