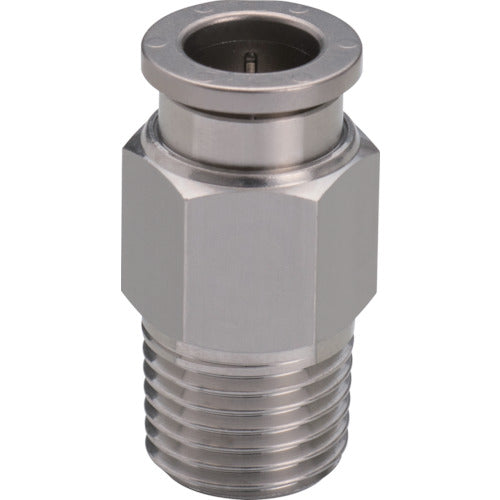

PISCO Corrosion-resistant SUS316 one-touch fitting Tube fitting SUS316 Straight SSPC10-02 1 piece

Catalog number: SSPC10-02 Features: ● One-touch fitting made of SUS316 with excellent corrosion resistance. Applications: ● For piping in fields such as food, pharmaceuticals, medical care, and semiconductors. Specifications: ● Applicable tube outer diameter (mm): 10 ● Connection port size: R1/4 ● Hexagonal face size (mm): 17 ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): -5 to 150 (no freezing) ● Fluid temperature (℃): -5 to 150 (no freezing) ● Total length (mm): 28.8 ● Fluid used: air, water (conditions apply), other chemicals, etc. (conditions apply) ● Applicable tube outer diameter D (mm): 10 ● Operating vacuum pressure (kPa): -100 Material/Finish: ● Metal body: Stainless steel (SUS316) ● Sealing rubber: Fluorine rubber (FKM) ● Thread material/surface treatment: SUS316
