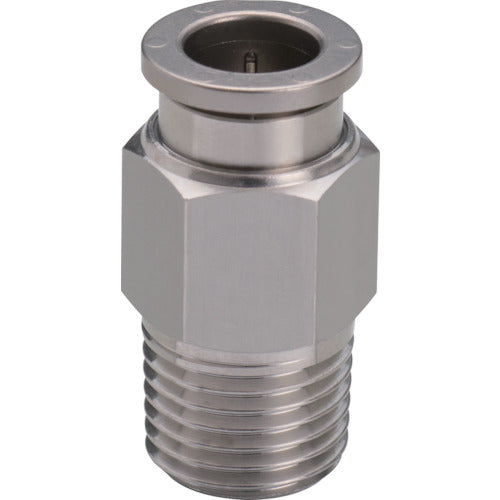

PISCO Corrosion-resistant SUS316 one-touch fitting Tube fitting SUS316 Straight SSPC8-01 1 piece

Catalog number: SSPC8-01 Features: One-touch fitting made of SUS316 with excellent corrosion resistance. Applications: For piping in fields such as food, pharmaceuticals, medical care, and semiconductors. Specifications: ● Compatible tube outer diameter (mm): 8 ● Connection port size: R1/8 ● Hexagonal side size (mm): 14 ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): -5 to 150 (no freezing) ● Fluid temperature (℃): -5 to 150 (no freezing) ● Total length (mm): 25.8 ● Operating fluid: air, water (conditions apply), other chemicals, etc. (conditions apply) ● Compatible tube outer diameter D (mm): 8 ● Operating vacuum pressure (kPa): -100 ● Operating fluid: air, water, other chemicals, etc. (conditions apply) ● Fluid temperature: -5 to 150℃ (no freezing) Material/Finish: ● Metal body: Stainless steel (SUS316) ● Sealing rubber: Fluorine rubber (FKM) ● Thread material/surface treatment: SUS316
