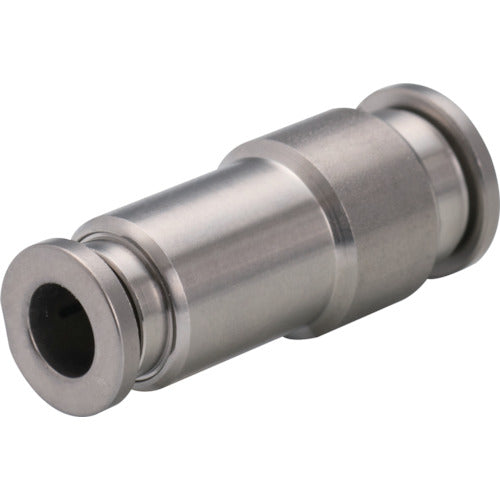

PISCO Corrosion-resistant SUS316 one-touch fitting Tube fitting SUS316 Different diameter union straight SSPG8-6 1 piece

Catalog number: SSPG8-6 Features: ● One-touch fitting made of SUS316 with excellent corrosion resistance. Applications: ● For piping in fields such as food, pharmaceuticals, medical care, and semiconductors. Specifications: ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): -5 to 150 (no freezing) ● Compatible tube outer diameter D1 (mm): 8 ● Compatible tube outer diameter D2 (mm): 6 ● Fluid temperature (℃): -5 to 150 (no freezing) ● Fluid used: air, water (conditions apply), other chemicals, etc. (conditions apply) ● Operating vacuum pressure (kPa): -100 ● Fluid used: air, water, other chemicals, etc. (conditions apply) ● Fluid temperature: -5 to 150℃ (no freezing) Material/Finish: ● Metal body: Stainless steel (SUS316) ● Sealing rubber: Fluorine rubber (FKM)
