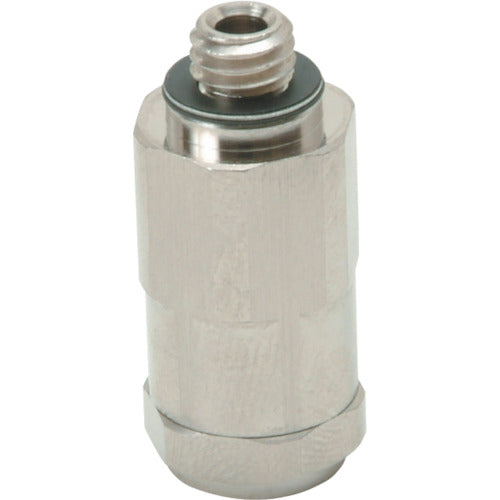

PISCO Drop Prevention Valve ECV01-F01 1 pc

Catalogue number: ECV01-F01 Features: ●Even if the workpiece comes off, the drop in the source pressure of the separate circuit can be kept to a minimum. ●Even if some of the multiple pads are not adsorbed, the pads that are properly adsorbed reduce the vacuum drop, preventing the workpiece that is properly adsorbed from falling. Specifications: ●Connection diameter 2: R1/8 ●Fluid used: Air ●Connection diameter 1: Rc1/8 ●Minimum operating suction flow rate (L/min (ANR)): 13 ●Operating temperature range: 0 to 60°C (no freezing) ●Operating pressure range (positive pressure): 0 to 0.7 MPa ●Operating pressure range (negative pressure): -100 to 0 kPa Materials/Finish: ●Metal parts: Brass + electroless nickel plating
