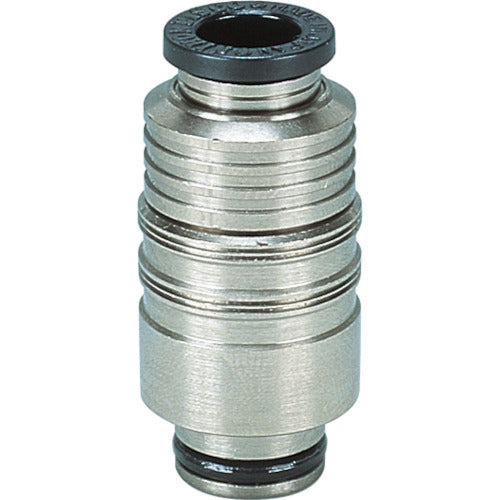

PISCO Mold Temperature Control Fitting Plug Straight AKC10-8P 1 pc

Catalogue number: AKC10-8P Features: ● A detachable one-touch fitting for mold cooling. ● When the plug is removed, no protrusions remain on the mold. Specifications: ● Maximum operating pressure (MPa): 0.9 ● Fluid used: air, water (clean water) (conditions apply), heat transfer oil (conditions apply) ● Compatible tube outer diameter D (mm): 8 ● Compatible socket: AK10-□S ● Vacuum pressure used (kPa): -100 ● Operating temperature range: 0 to 60°C (air), 0 to 99°C (water), 0 to 120°C (heat transfer oil) (no freezing) Material/Finish: ● Metal body: Brass + electroless nickel plating ● Sealing rubber: HNBR
