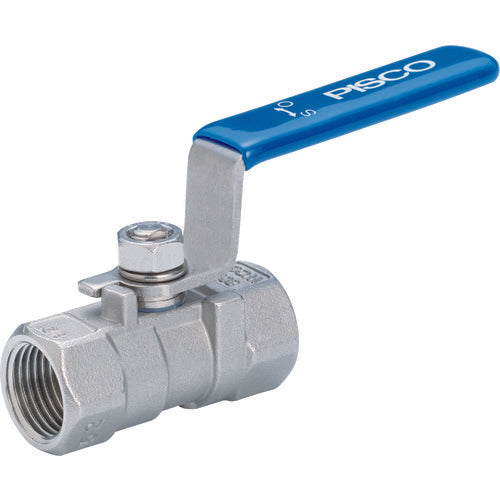

PISCO SUS316 equivalent ball valve 1 piece, reduced bore type NSBVF10-04 1 piece

Catalog number: NSBVF10-04 Features: ●The material used for the liquid contact parts is equivalent to SUS316 (SUS316 or CF8M). ●The handle fixing stem is designed not to come off. ●The input and output can be installed in either direction. ●Washable specifications. 01kPa) English: (Cleaned with an alkaline cleaning agent) Specifications: ●Height (mm): 57 ●Operating pressure (MPa): 5.5 (Caution required) ●Operating temperature range (℃): -29 to +232 (fluid must not freeze) ●Connection diameter: Rc1/2 ●Depth (mm): 118.1 ●Operating fluid: Air, inert gases such as nitrogen and helium (non-toxic), water and liquids (conditions apply), others (conditions apply) ●Width (mm): 27.3 ●Maximum operating pressure: 5.5MPa (Caution required) ●Operating vacuum pressure: -101kPa ●Operating temperature range: -29 to 232℃ (fluid must not freeze) Material/Finish: ●Body: Stainless steel (equivalent to SUS316) ●Ball: Stainless steel (equivalent to SUS316) ●Ball seat: Fluorine resin (PTFE) ●Handle: Stainless steel (equivalent to SUS304) Caution: ●The maximum operating pressure varies depending on the operating temperature. Please check the relationship between operating temperature and maximum operating pressure in our catalog.
