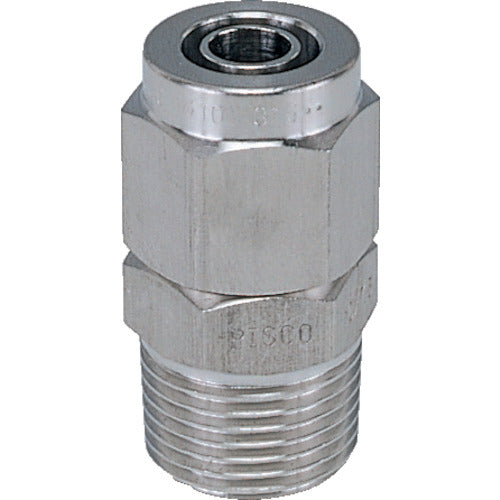

PISCO SUS316 Fastening Fitting Straight Tube 0425 Thread R1/8 NSC0425-01 1 pc

Catalog number: NSC0425-01 Features: ●All materials are made of SUS316, which has excellent corrosion resistance. ●No need for sleeves, so there is no need to worry about forgetting to attach them or losing them. ●Air is purified and packaged in a clean room (equivalent to ISO class 6). Specifications: ●Connection diameter: R1/8 ●Hexagonal facets (mm): Main body: 10, Clamping nut: 10 ●Usable fluid: Air, water, others ●Compatible tube outer diameter x inner diameter D (mm): 4 x 2.5 ●Usable temperature range: Varies depending on tube specifications (no freezing) ●Maximum operating pressure: Conforms to the maximum operating pressure of the tube ●Usable vacuum pressure: -100kPa Material/Finish: ●Main body: SUS316 ●Clamping nut: SUS316
