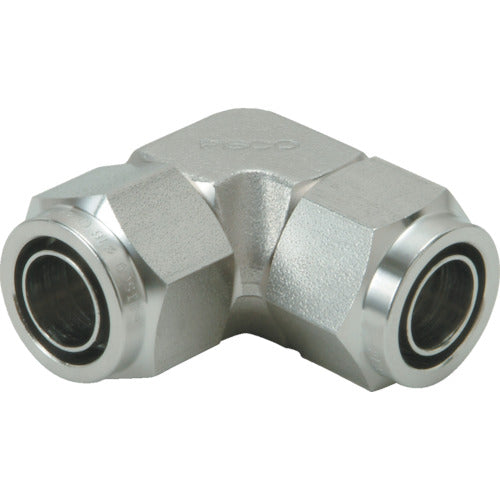

PISCO SUS316 Fastening Fitting Union Elbow NSV1290 1 pc

Catalog number: NSV1290 Features: ●All materials are made of SUS316, which has excellent corrosion resistance. ●Since no sleeve is required, there is no need to worry about forgetting to attach the sleeve or losing it. ●Air is purified and packaged in a clean room (equivalent to ISO class 6). Specifications: ●Hexagonal facets (mm): Main body: 19, Clamping nut: 19 ●Usable fluid: Air, water, others ●Compatible tube outer diameter x inner diameter D (mm): 12 x 9 ●Usable temperature range: Varies depending on tube specification range (no freezing) ●Maximum operating pressure: Conforms to the maximum operating pressure of the tube ●Usable vacuum pressure: -100kPa Material/Finish: ●Main body: SUS316 ●Clamping nut: SUS316
