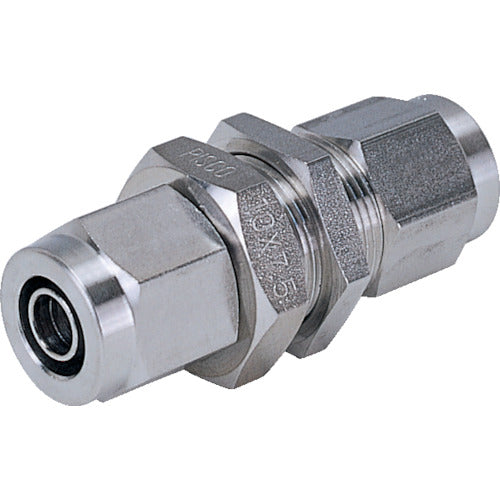

PISCO SUS316 Fastening Fitting Bulkhead Union NSM0640 1 pc

Catalog number: NSM0640 Features: ●All materials are made of SUS316, which has excellent corrosion resistance. ●Since no sleeve is required, there is no need to worry about forgetting to attach the sleeve or losing it. ●Air is purified and packaged in a clean room (equivalent to ISO class 6). Specifications: ●Hexagonal facets (mm): Body: 17, Clamping nut: 12 ●Usable fluid: Air, water, others ●Compatible tube outer diameter x inner diameter D (mm): 6 x 4 ●Usable temperature range: Varies depending on tube specification range (no freezing) ●Maximum operating pressure: Conforms to the maximum operating pressure of the tube ●Usable vacuum pressure: -100kPa Material/Finish: ●Body: SUS316 ●Clamping nut: SUS316
