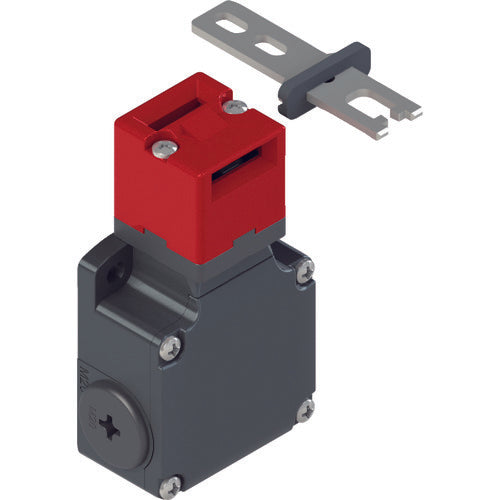

Pizzato Safety Door Switch FL Type 20 F Type FL2093-F 1 pc

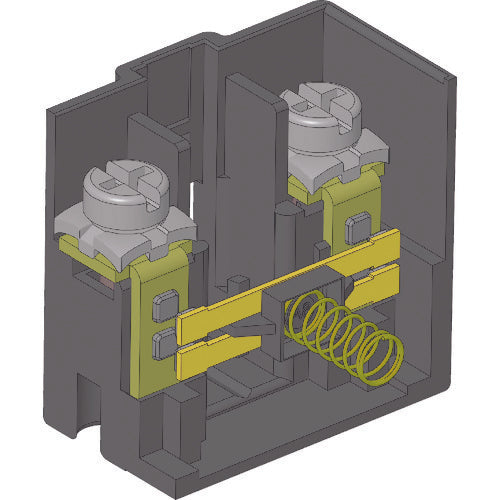

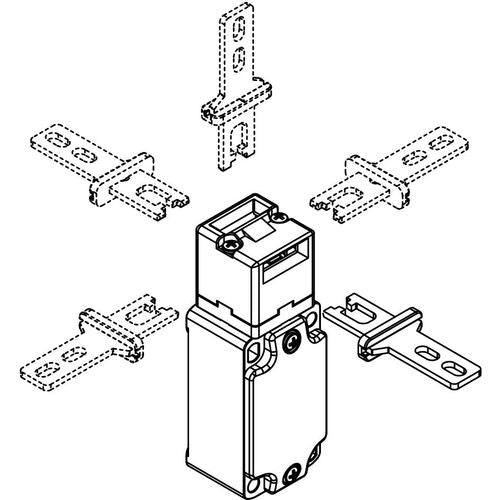

Catalog number: FL2093-F Features: ● A durable, long-life safety door switch. ● When loosened, the terminal screw is held in the contact block, allowing for smooth operation without worrying about losing it. ● A safe structure that prevents hands from touching the terminals when wiring. ● There is sufficient play when inserting the actuator, making it less likely for the machine to stop unexpectedly. ● With a twin bridge (two-line) mechanism, even if one side of the contact is insulated due to rust or deterioration, the other side of the contact will still be energized. ● The head can be replaced every 90°, allowing the actuator to be positioned from a total of five directions (including the top). ● There are three conduit openings, making wiring and positioning easy. Specifications: ● Actuator shape: Straight key ● Contact configuration: 1NO+2NC ● Width (mm): 56 ● Depth (mm): 31.5 ● Height (mm): 100 ● Protection class: IP67 ● Shape: FL ● Positive opening mechanism ● Conduit shape (PG13.5) ● Protection class: IP67 ● Certification standards: CE, IMQ, UL, CCC, EAC ● Compliance standards: EN ISO14119, EN ISO13849-1, EN 60204-1) ● Low voltage directive, EMC directive ● Mechanical life 1 million cycles Material/Finish: ● Housing: Metal ● Actuator: Stainless steel
