Pizzato Safety Door Switch FR Type 20 D-Type Adjustment No Removal Required Head FR2093-D 1 pc

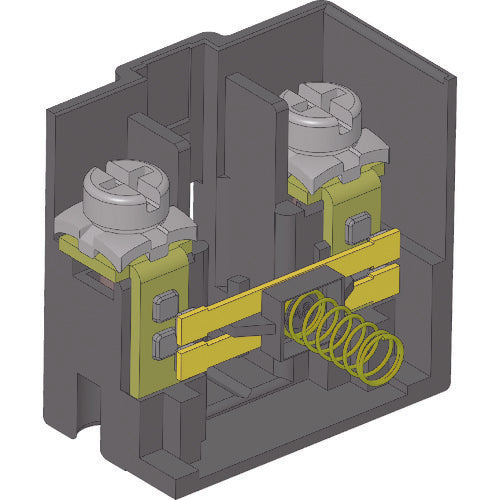

Catalog number: FR2093-D Features: ●A durable, long-life safety door switch. ●When the terminal screw is loosened, it is held inside the contact block, allowing for smooth operation without worrying about losing it. ●A safe structure prevents hands from touching the terminals when wiring. ●There is sufficient play when inserting the actuator, making it less likely for unexpected machine stoppages to occur. ●With a twin bridge (two-line) mechanism, even if one side of the contact is insulated due to rust or deterioration, electricity will flow through the other side of the contact. ●The angle can be freely adjusted without removing the head. Specifications: ● Actuator shape: Straight key ● Contact configuration: 1NO+2NC ● Width (mm): 30.8 ● Depth (mm): 30.8 ● Height (mm): 93 ● Protection class: IP67 ● Shape: FR ● Positive opening mechanism ● Conduit shape (PG13.5) ● Protection class: IP67 ● Certification standards: CE, IMQ, UL, CCC, EAC ● Compliance standards: EN ISO14119, EN ISO13849-1, EN 60204-1) ● Low voltage directive, EMC directive ● Mechanical life 1 million cycles Material/Finish: ● Housing: Glass fiber reinforced technopolymer ● Actuator: Stainless steel
