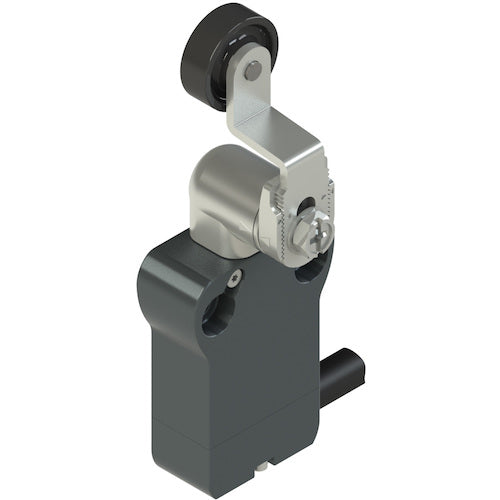

Pizzato Pre-wired limit switch NB type B11 Swivel lever/roller 20mm 2KE type NB B112KE-DN2 1 piece

Catalog number: NB B112KE-DN2 Features: ●Limit switch with cable or connector. ●Suitable for use in narrow spaces. ●Switch body and connector can be separated for flexible use. ●Metal housing with UV-resistant powder coating for excellent durability (protection class: IP67, IP69K). Specifications: ●Actuator shape: Swivel lever/roller Φ20mm 2KE type ●Contact configuration: 1NO+1NC ●Width (mm): 38 ●Height (mm): 102 ●Depth (mm): 16 ●Protection class: IP67, IP69K ●1NO+1NC snap action with positive opening mechanism PVC cable (IEC60332-1, oil resistant) 2m included ●Certification standards: IMQ, UL, CCC, EAC ●Low voltage directive, EMC directive
