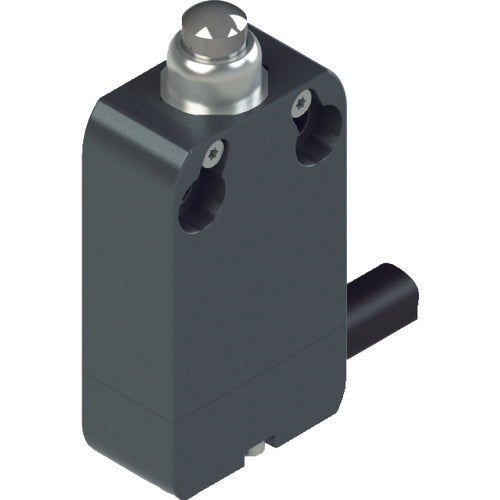

Pizzato Pre-wired limit switch NF type B11 plunger 0AB type NF B110AB-DN2 1 piece

Catalog number: NF B110AB-DN2 Features: ●Limit switch with cable or connector. ●Suitable for use in narrow spaces. ●Switch body and connector can be separated for flexible use. ●Equipped with a housing made of glass fiber reinforced technopolymer, it has excellent flame retardancy and shock absorption. ●Double insulation structure. Specifications: ●Actuator shape: Plunger 0AB type ●Contact configuration: 1NO+1NC ●Width (mm): 30 ●Height (mm): 63 ●Depth (mm): 16 ●Protection class: IP67, IP69K ●1NO+1NC snap action with positive opening mechanism PVC cable (IEC60332-1, oil resistant) 2m included ●Certification standards: IMQ, UL, CCC, EAC ●Low voltage directive, EMC directive ●Protection class: IP67, IP69K
