Pizzato Micro Switch MK Type 1 Screw Terminal Plunger D12 MKV11D12 1 pc

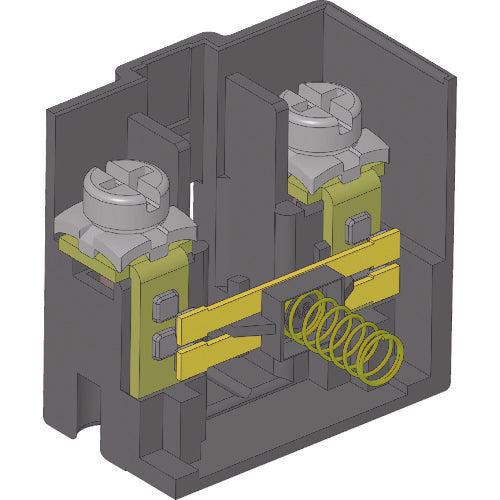

Catalog number: MKV11D12 Features: ●A microswitch with excellent durability and long life. ●With a twin bridge (two lines) mechanism, even if one side of the contact is insulated due to rust or deterioration, the other side of the contact will still be energized. ●By attaching a terminal cover (sold separately), it can meet a maximum protection class of IP40. Specifications: ●Actuator shape: Plunger D12 type ●Terminal type: Screw-tightened terminal ●Width (mm): 49.2 ●Height (mm): 51.2 ●Depth (mm): 17.4 ●1NO+1NC positive opening mechanism ●Certification standards: IMQ, UL, CCC, EAC ●Low Voltage Directive, EMC Directive
