Pizzato Limit Switch FR Type 5 Coil Spring 25 Type FR 525 1 pc

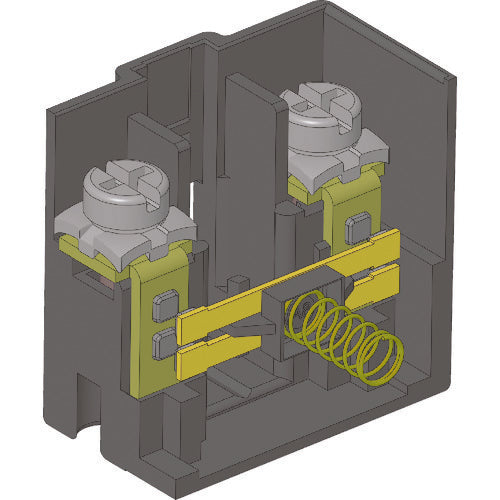

Catalogue number: FR 525 Features: ●This limit switch has a housing made of glass fiber reinforced technopolymer, and has excellent flame retardancy and shock absorption properties. ●With a twin bridge (two lines) mechanism, even if one side of the contact is insulated due to rust or deterioration, electricity will flow through the other side of the contact. ●Double insulation structure. Specifications: ●Actuator shape: Coil spring 25 type ●Contact configuration: 1NO+1NC ●Width (mm): 30.8 ●Height (mm): 178.5 ●Depth (mm): 30.8 ●Protection class: IP67 ●1NO+1NC snap action ●Certification standards: IMQ, UL, CCC, EAC ●Conduit shape (PG13.5) ●Low voltage directive, EMC directive
