Pizzato Limit Switch FR Type 5 Stainless Steel Roller 17 Type FR 517 1 pc

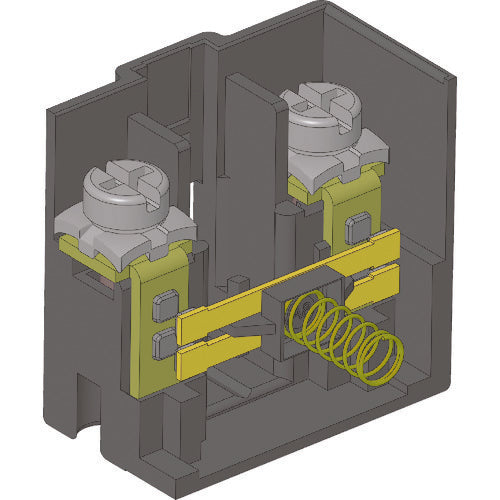

Catalog number: FR 517 Features: ●This limit switch has a housing made of glass fiber reinforced technopolymer, and is flame retardant and shock absorbing. ●With a twin bridge (two lines) mechanism, even if one side of the contact is insulated due to rust or deterioration, the other side of the contact will still be energized. ●Double insulation structure. Specifications: ●Actuator shape: Stainless steel roller 17 type ●Contact configuration: 1NO+1NC ●Width (mm): 30.8 ●Height (mm): 101 ●Depth (mm): 30.8 ●Protection rating: IP67 ●1NO+1NC snap action with positive opening mechanism ●Certification standards: IMQ, UL, CCC, EAC ●Conduit shape (PG13.5) ●Low voltage directive, EMC directive
