Pizzato Limit Switch FR Type 9 Magnetic Roller Rod 53E0V9 Type FR 953-E0V9 1 pc

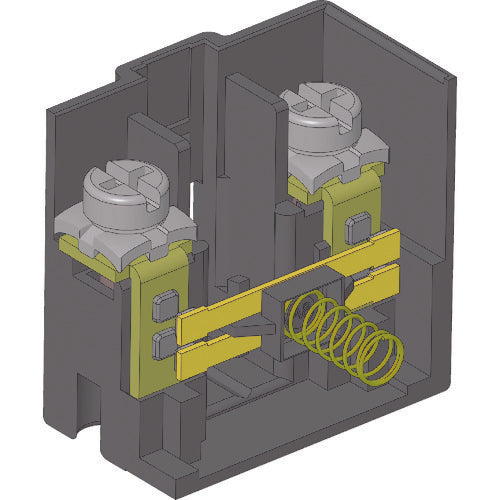

Catalog number: FR 953-E0V9 Features: ●This limit switch has a housing made of glass fiber reinforced technopolymer, and is flame retardant and shock absorbing. ●With a twin bridge (two lines) mechanism, even if one side of the contact is insulated due to rust or deterioration, the other side of the contact will still be energized. ●Double insulation structure. Specifications: ●Actuator shape: Magnetic roller rod 53E0V9 type ●Contact configuration: 2NC ●Width (mm): 30.8 ●Height (mm): 150.8 ●Depth (mm): 30.8 ●Protection class: IP67 ●2NC slow action positive opening mechanism ●Certification standards: IMQ, UL, CCC, EAC ●Conduit shape (PG13.5) ●Low voltage directive, EMC directive
