Pizzato Limit Switch FR Type 9 Adjustable Glass Fiber Rod 69 Type FR 969 1 pc

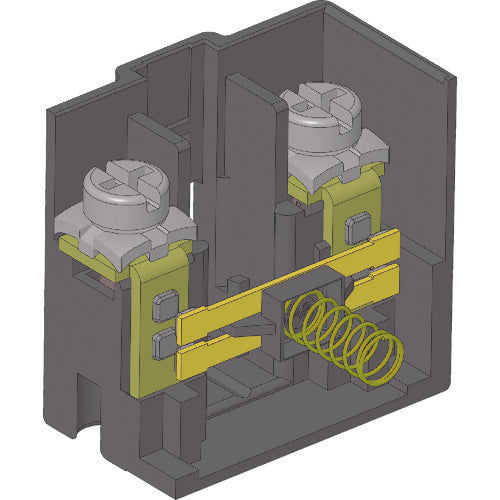

Catalogue number: FR 969 Features: ●This limit switch has a housing made of glass fiber reinforced technopolymer, and has excellent flame retardancy and shock absorption properties. ●With a twin bridge (two lines) mechanism, even if one side of the contact is insulated due to rust or deterioration, the other side of the contact will still be energized. ●Double insulation structure. Specifications: ●Actuator shape: Adjustable glass fiber rod type 69 ●Contact configuration: 2NC ●Width (mm): 30.8 ●Height (mm): 89.5-259.5 ●Depth (mm): 30.8 ●Protection class: IP67 ●2NC slow action ●Certification standards: IMQ, UL, CCC, EAC ●Conduit shape (PG13.5) ●Low voltage directive, EMC directive
